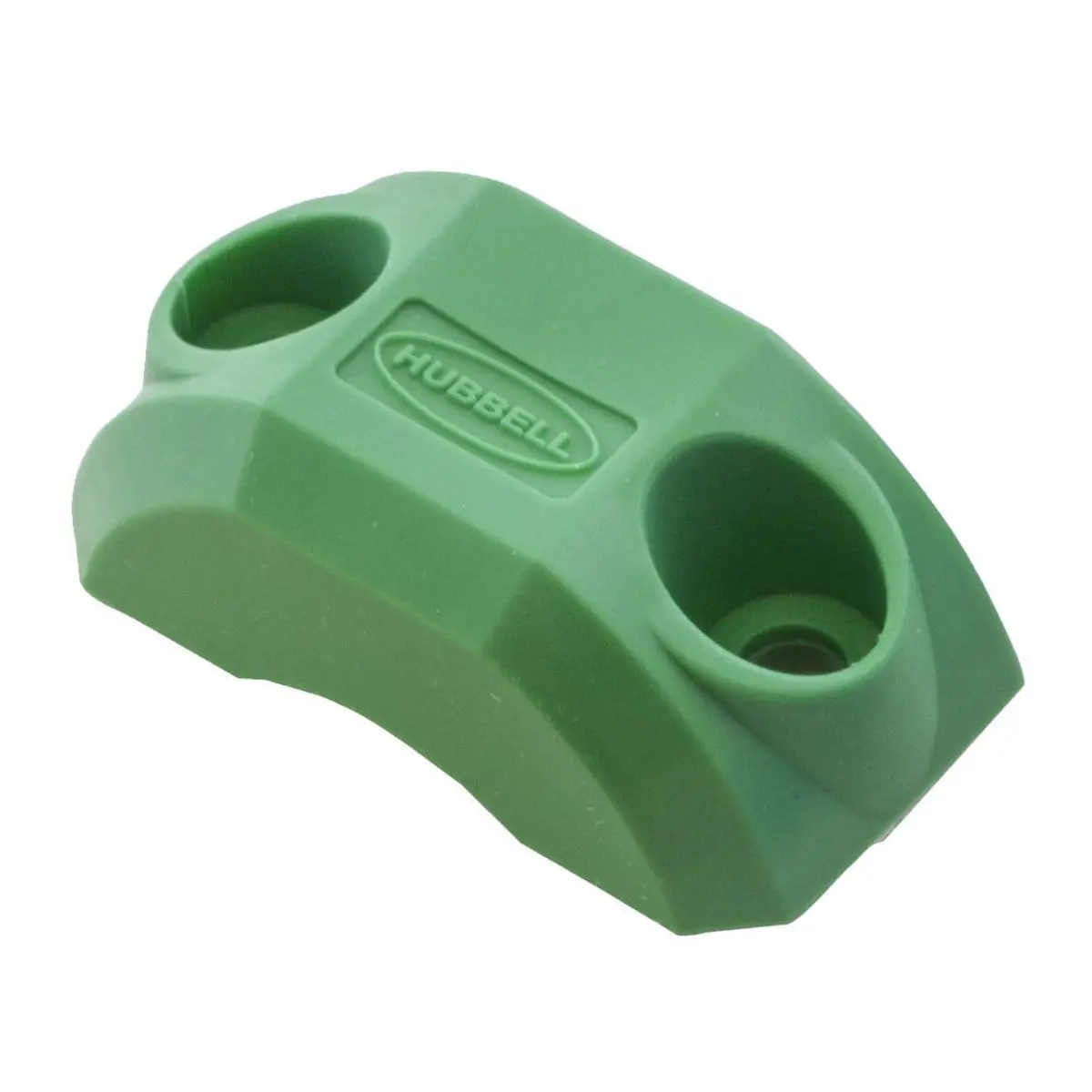

Cord Clamp Size 1 – GREEN

HBLCORDCLAMPGR Cord Clamp Size 1 – Green

The Hubbell HBL15FCAPGR is a green, single-pole, female protective cap from the Series 15 product line. This accessory is designed to fit over the end of a 150 Amp single-pole female plug or receptacle. Made from durable thermoplastic elastomer, it protects electrical connections from contaminants, water, and damage when not in use. The cap offers a high degree of protection, with a NEMA enclosure rating of 3R, 4X, and 12.

Applications

The HBL15FCAPGR is suitable for temporary power distribution applications in demanding environments. Entertainment venues, like concerts, stadiums, arenas, and movie-making sets, use these caps to protect their high-current connectors. Theme parks and carnival equipment also benefit from this protective cover. It is suitable for industrial applications that require high-amperage connections in dry, indoor, and temporary outdoor locations. Construction sites and outdoor power setups utilize these caps for environmental protection.

Features and Benefits

The cap’s thermoplastic elastomer construction offers excellent durability and resistance to impact. This material also provides protection against water and contaminants, preventing damage to the electrical contacts. The black color allows it to blend into the application. Its design offers ease of assembly and disassembly, requiring no special tools. The single-pole configuration makes it easy to use with standard Series 15 connectors. The cap provides an extra layer of safety by covering live female contacts.

Specifications

• Item Type: Protective Cap, Female.
• Series: Series 15.
• Amperage Rating: 150 A.
• Voltage Rating: 600 VAC/250 VDC.
• Color: Green
• Material: Thermoplastic Elastomer.
• NEMA Enclosure Rating: 3R, 4X, 12.Overall Length: 2.25 inches.
• Overall Width: 0.8 inches.

Mating Products

The HBL15FCAPGR is designed to mate with Hubbell Series 15 female plugs and receptacles. It secures to the connector body to prevent accidental removal. This accessory provides a cover for the electrical contacts when the plug or receptacle is not in use. If you are looking for different color cord clamps, you can buy: Yellow, Red, Blue, Green, Purple, Orange

Compatible Devices

This cap is compatible with all Hubbell Series 15, 150 Amp female connectors. It is also suitable for use with any other brand of single-pole cam-type connectors that conform to the UL1691 standard for component connectors.

Certifications and Compliance

The HBL15FCAPGR holds UL and cUL (or cULus) listings. This ensures it meets safety and performance requirements for both the US and Canada. It complies with ANSI/NFPA 70 (National Electrical Code) standards. The cap also adheres to the UL1691 standard. Its enclosure ratings of NEMA 3R, 4X, and 12 indicate its suitability for various environmental conditions, from rain and ice to dust and corrosion.

Download the specifications directly from Hubblle on the cord clamp accessory in Green
